myMix APPLICATION EXAMPLES

myMix can be integrated with any mixing console – digital or analog. In any case the local myMix inputs are full network inputs, so any signal connected to a myMix unit is immediately available in full quality via the network to all other units.

Stand alone

or self contained applications

House Of Worship

on stage and stand alone

myMix Integration

in main sound systems and Installation

Other AV applications

Including myMix Install examples

Self-contained myMix applications that don’t require a main console with an operator.

myMix setups are ideal for rehearsal and small gigs, or for touring bands that want a 100% reproducible sound on stage – independent of the FOH console.

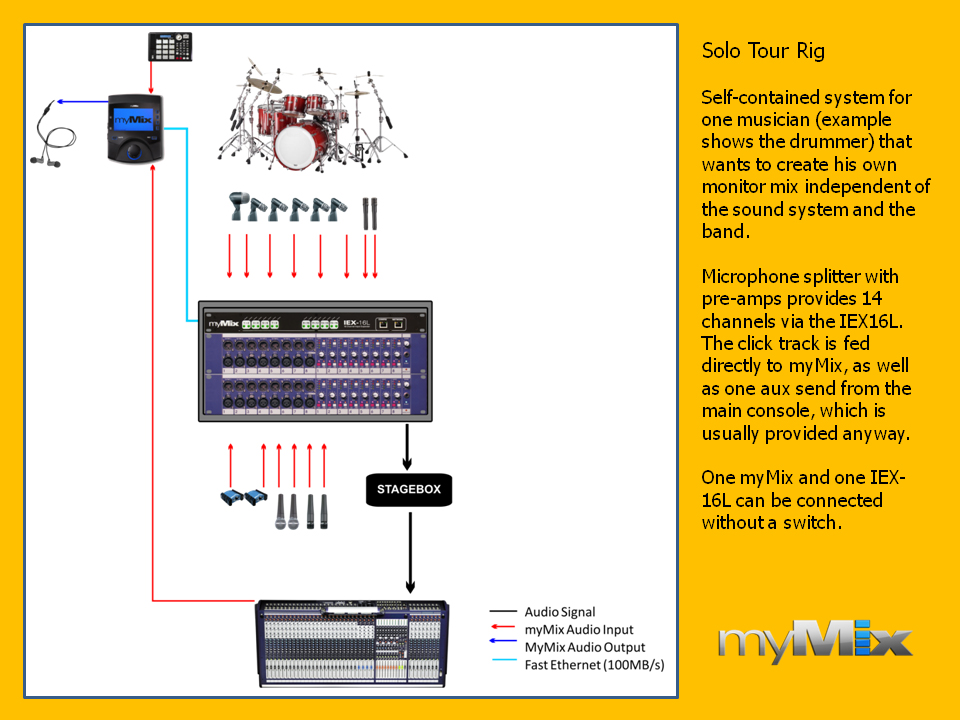

Solo-Tour Rig-XL48

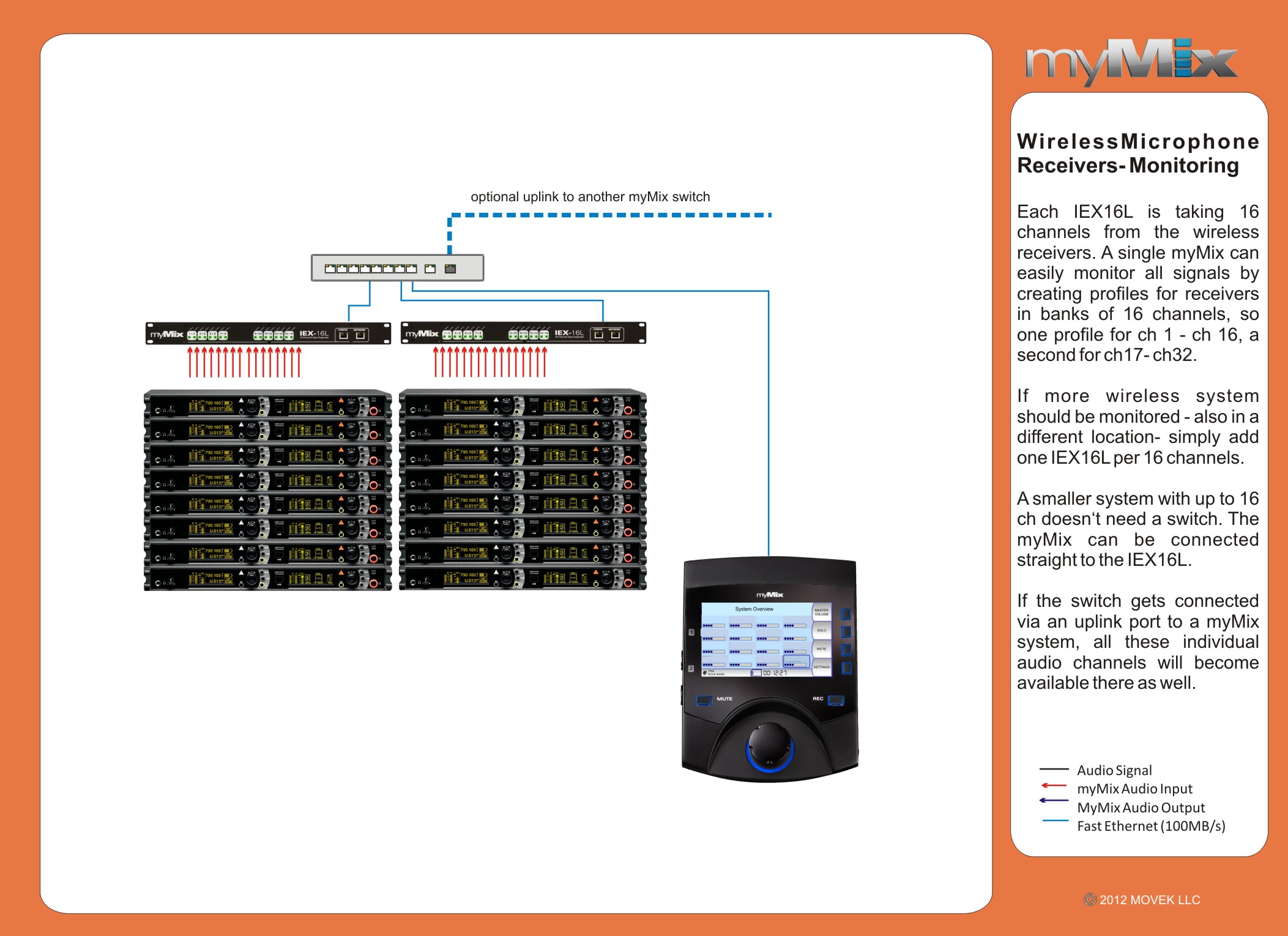

Wireless Microphone Receiver-Monitoring

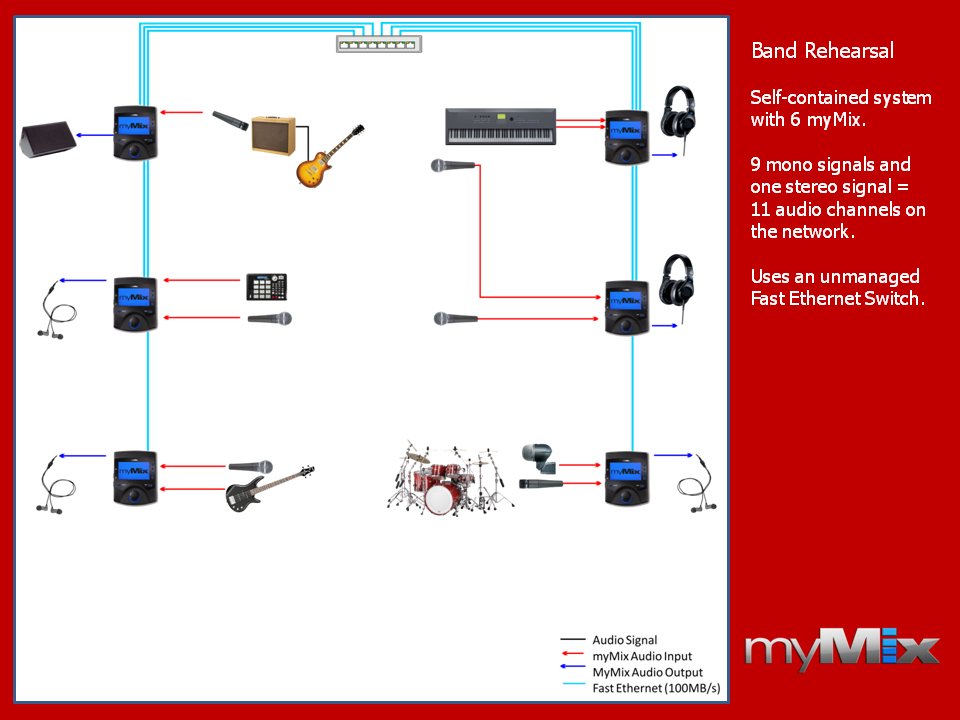

Band rehearsal

myMix as mixing console

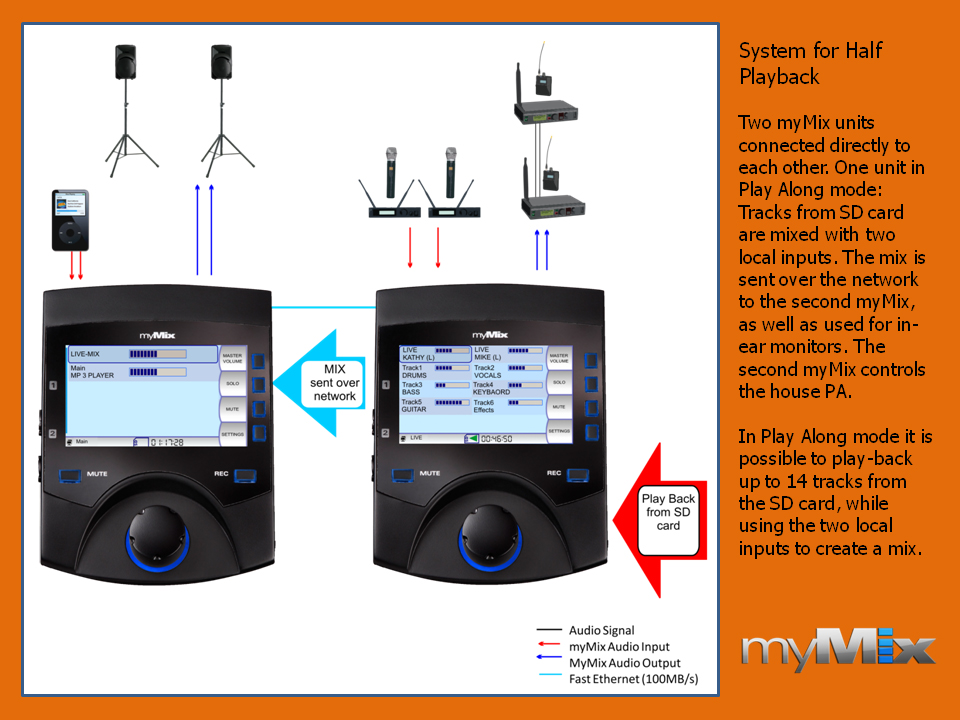

System for Half Playback

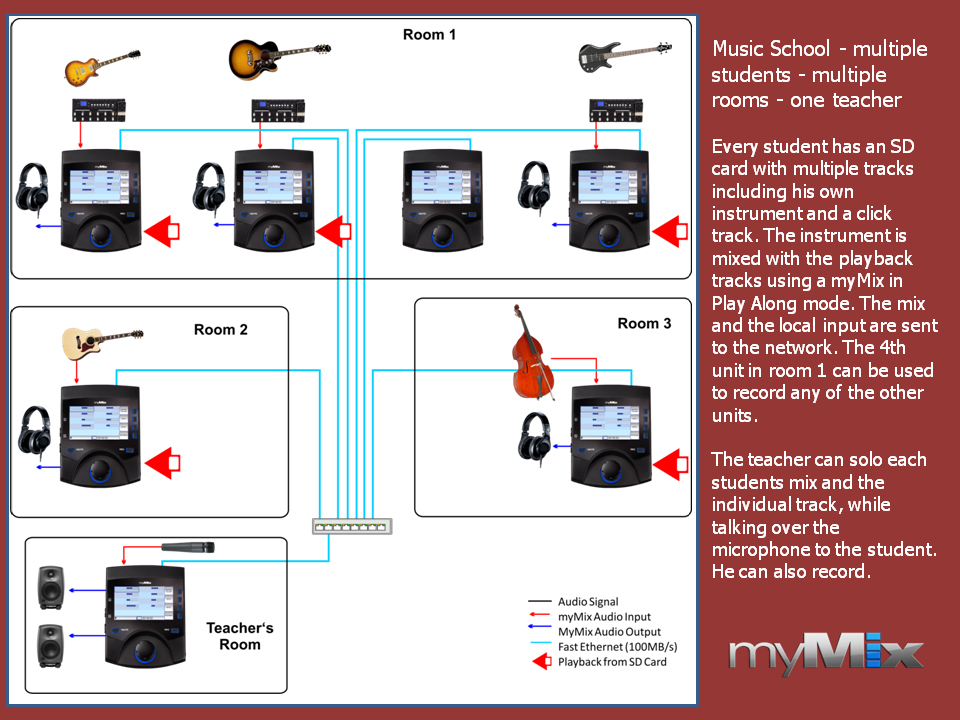

Music School – One teacher – Multiple Student/Rooms

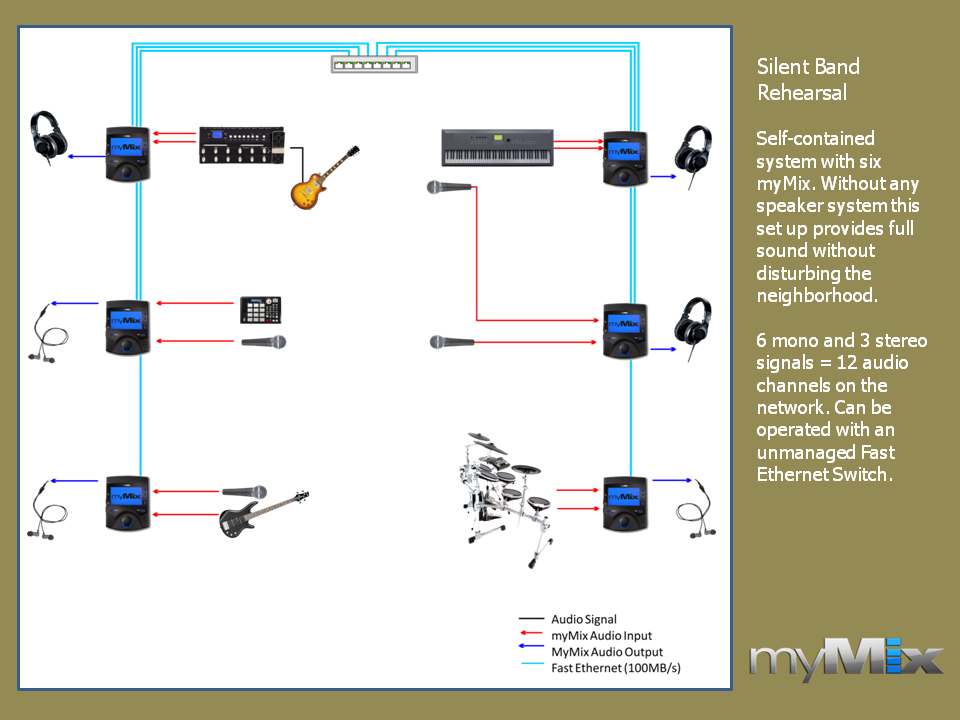

Silent Band Rehearsal

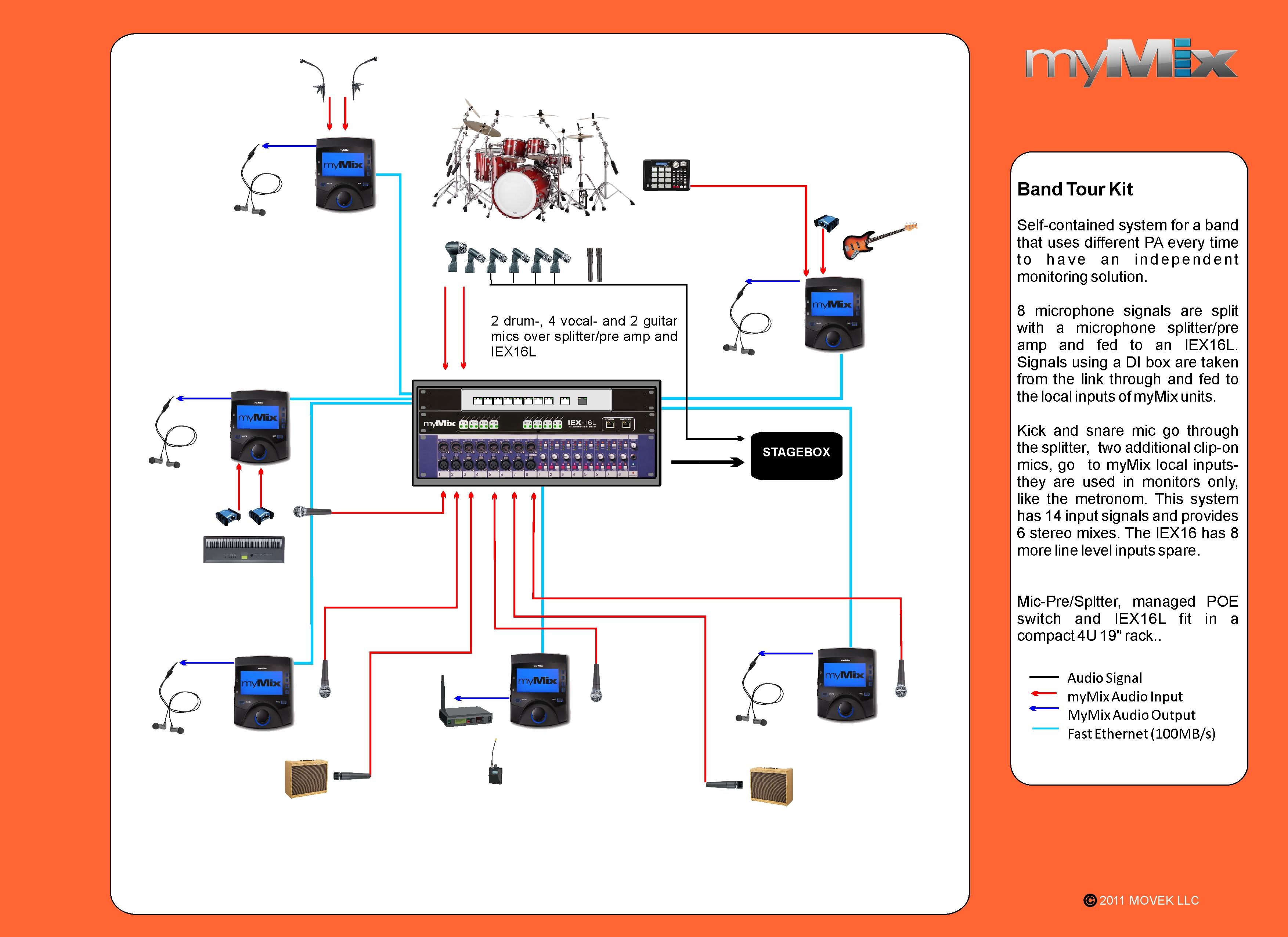

Band Tour Rig – independent from the PA

myMix as 10-ch mixing console for FOH and monitors

3 x myMix as console for small event

myMix is ideal for houses of worship. It’s not only the monitor mixing system on stage, because it can be used stand alone, the youth group can take it out for sessions, the multi-track recording and playback allows for new band members to get up to speed in no time, and many other advantages.

Large system. Using a MADI feed from the console

Large system. Inputs from console and mic splitter

Medium size HOW system, signals from main console

Small system using myMix for monitor and main mix

92-channel myMix system with Jimmy Swaggart’s Ministries

Medium Size HOW system with additional myMix Install

3 x myMix as console for small event

myMix as 10-channel mixing console for monitor and PA

Starter Kit with 5 myMix for 8 musicians

MixPack 5 – Monitoring for 11 musicians

With or without the IEX-16L input expander, there are many possibilities to integrate myMix as a monitoring system into a main sound system. Applications range from small concert systems and worship bands, to big bands, theatrical applications, large orchestras, broadcast, TV and musicals as well as recording studios.

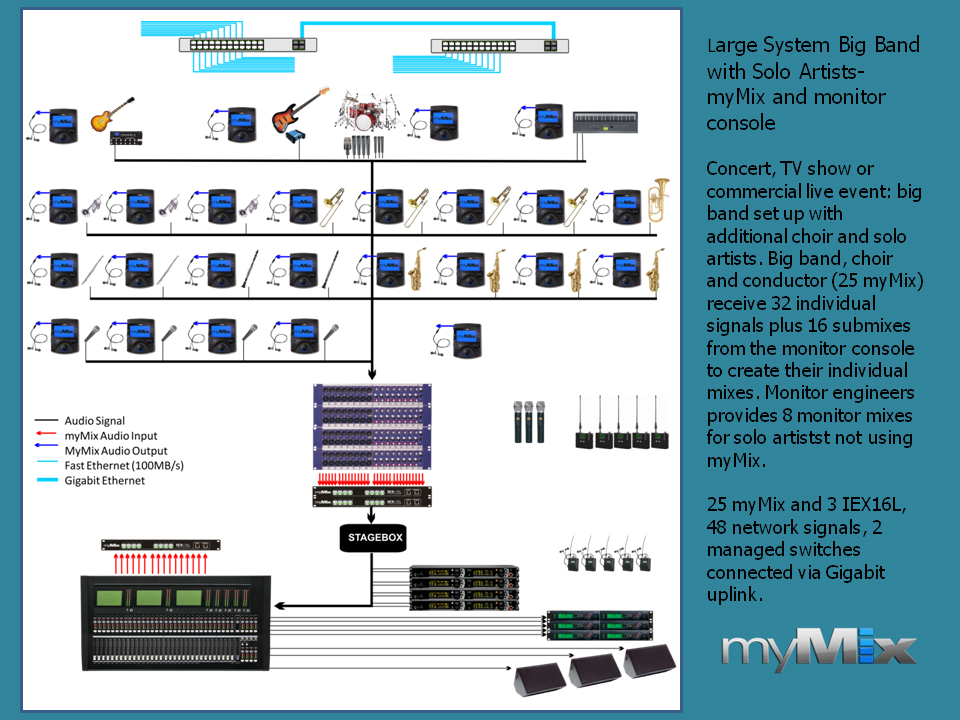

Big band and solo artists

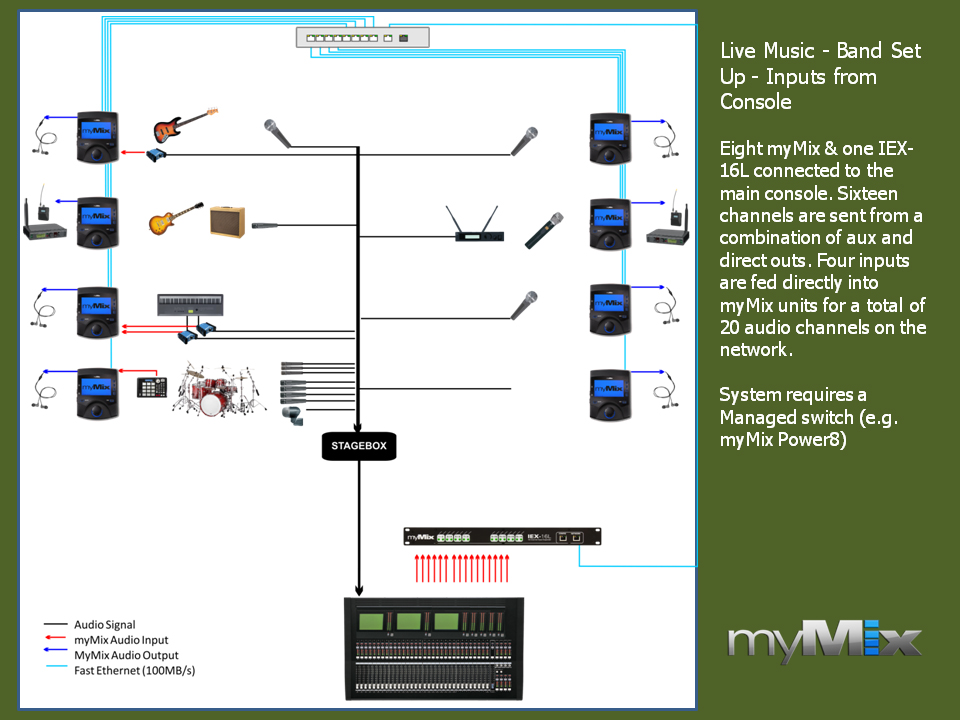

Live band console

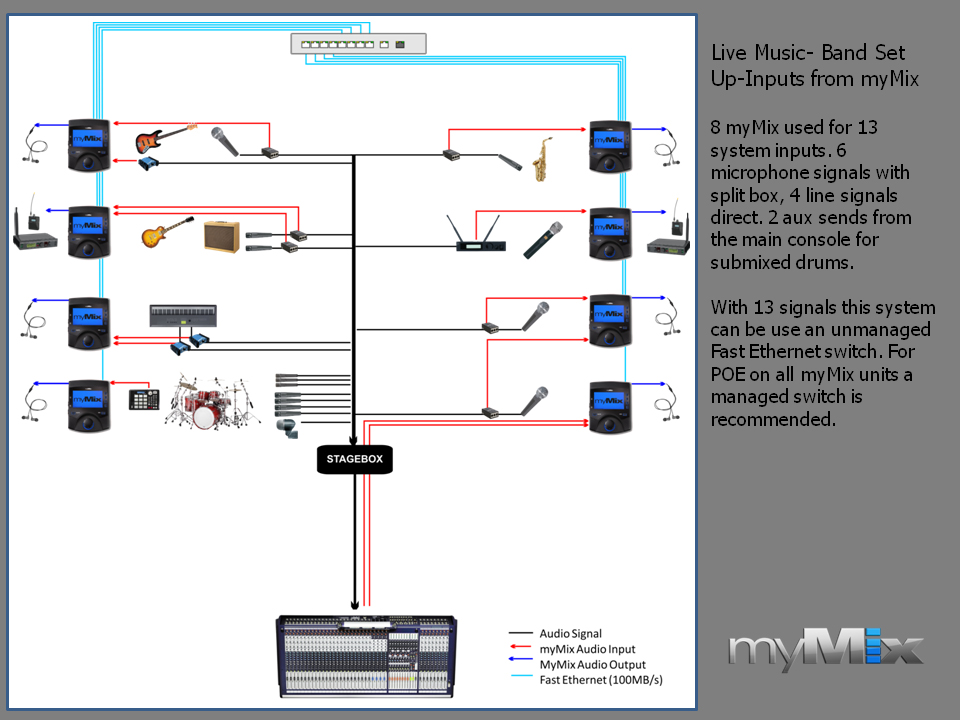

Live band inputs

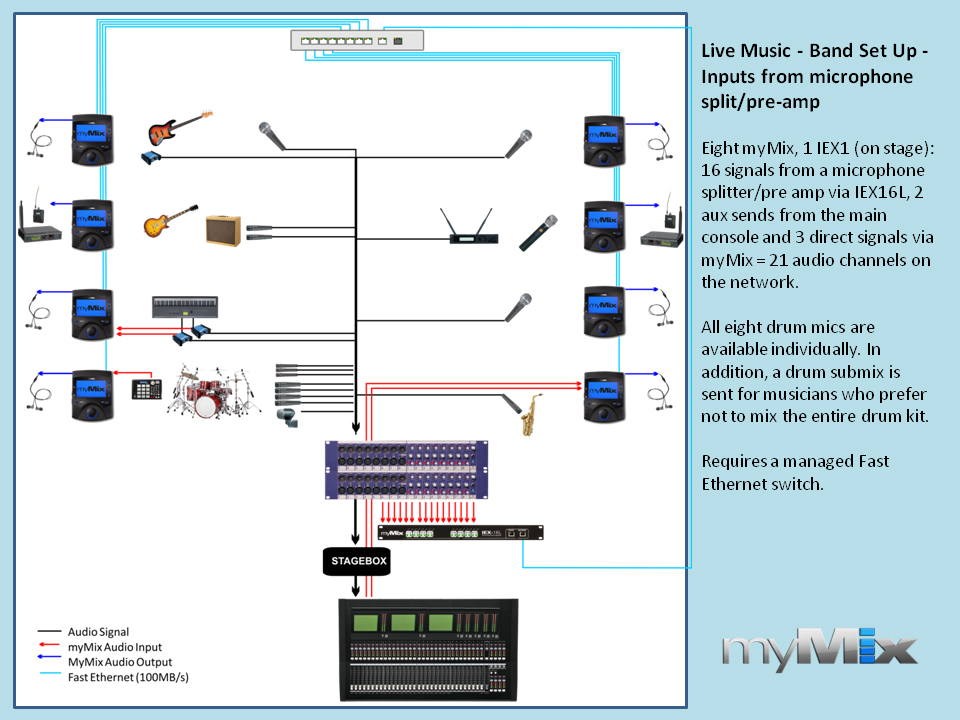

Live band split

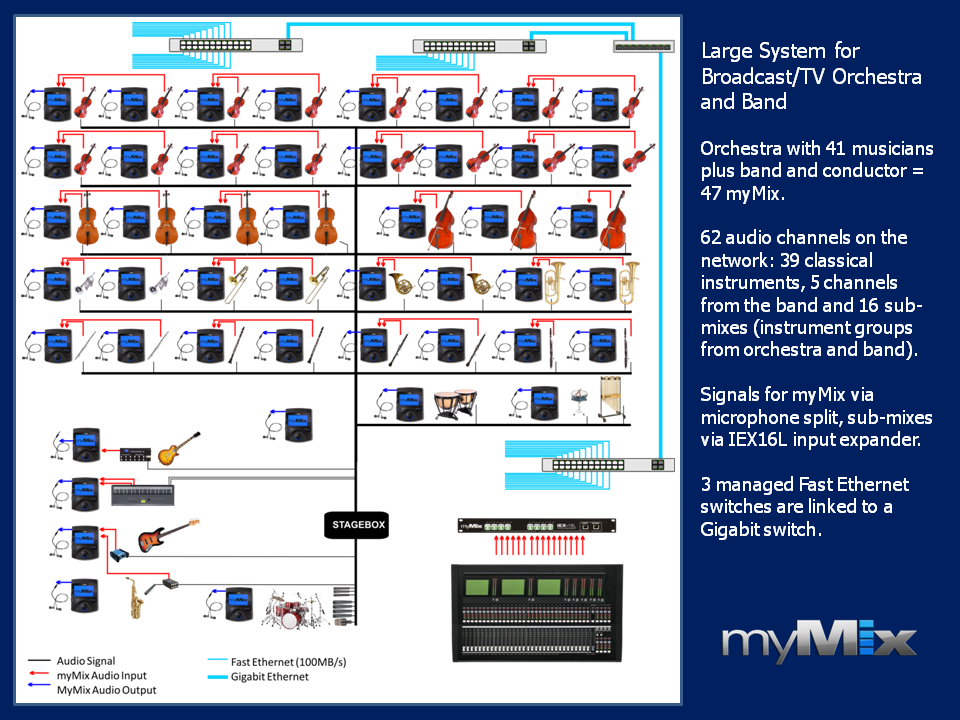

Orchestra application

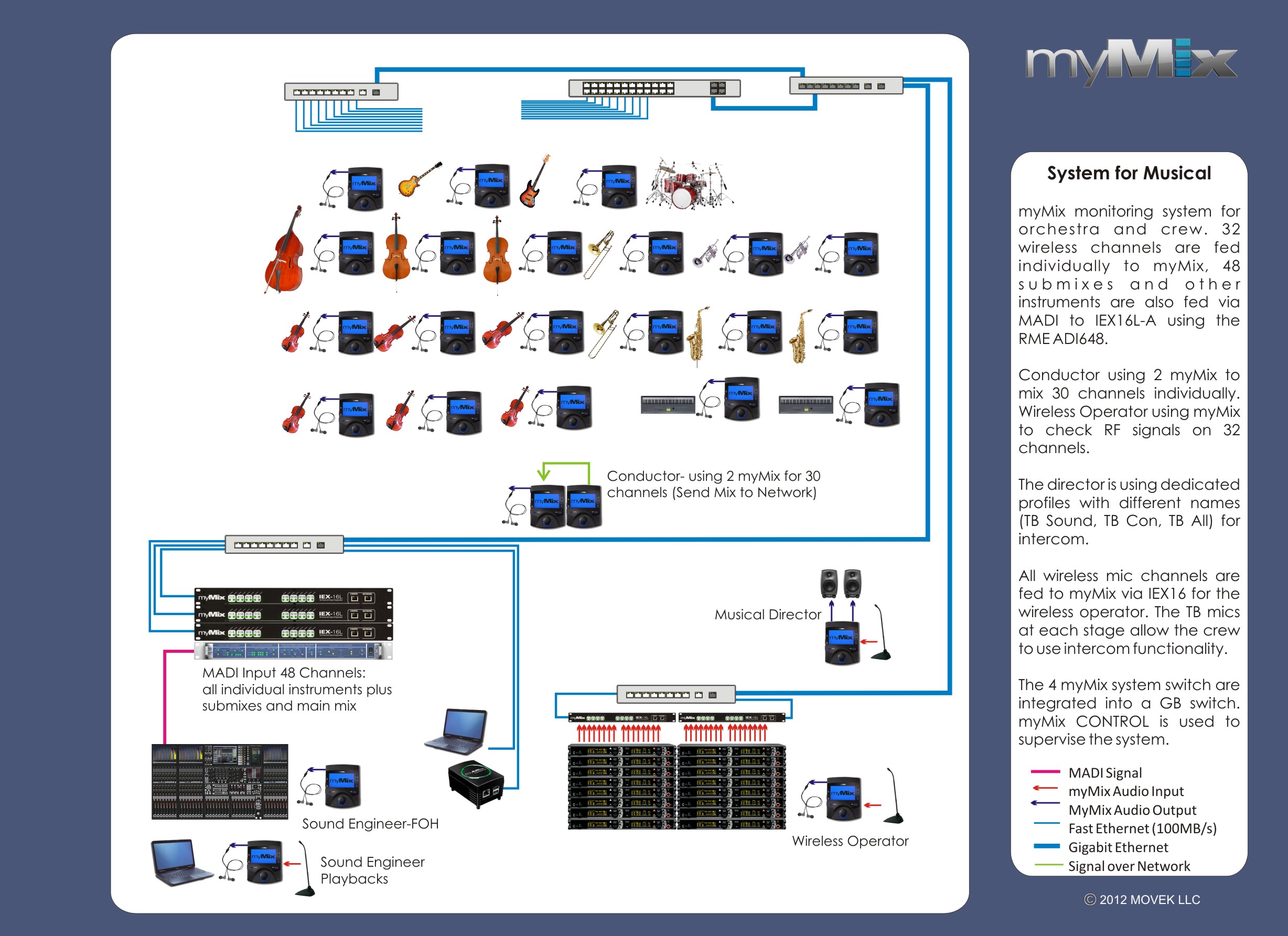

Musical theater

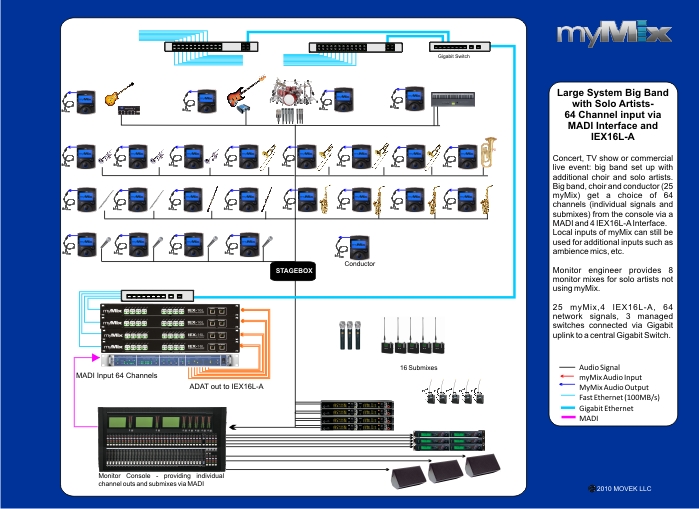

Big band – 64 channel input in MADI format

Integrated with a DIGICO console

Dedicated applications with myMix Install

With or without the IEX-16L input expander, there are many possibilities to integrate myMix as a monitoring system into a main sound system. Applications range from small concert systems and worship bands, to big bands, theatrical applications, large orchestras, broadcast, TV and musicals as well as recording studios.

Combined listening and simple intercom system

myMix Install with myMix – medium size HOW application

Classical room combining

Sound distribution using a Ethernet network in a theater

Decentralized mixing and an intuitive user interface offer advantages to using myMix outside of the music monitoring and recording environment.

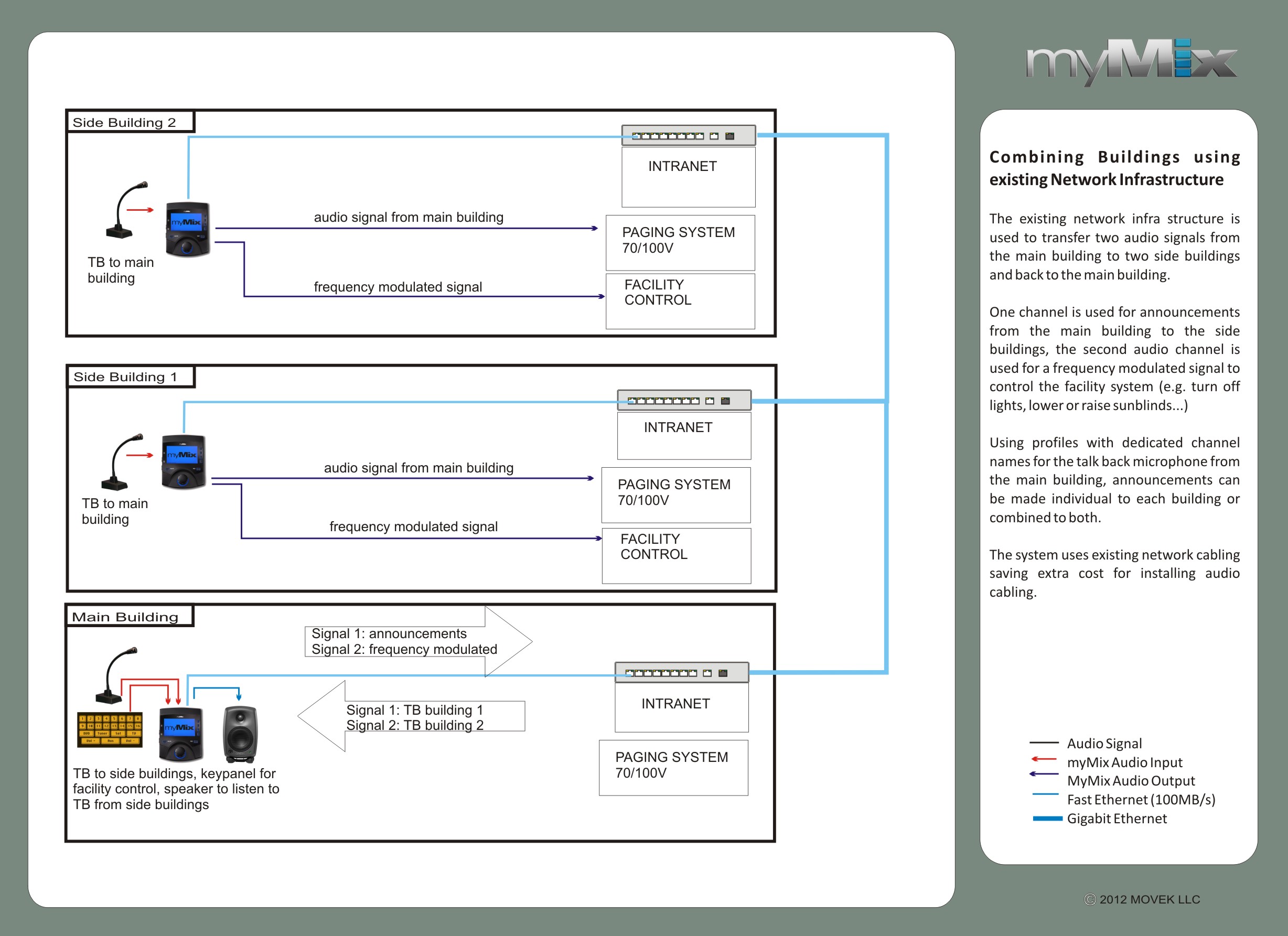

Combine Buildings- Commercial Audio

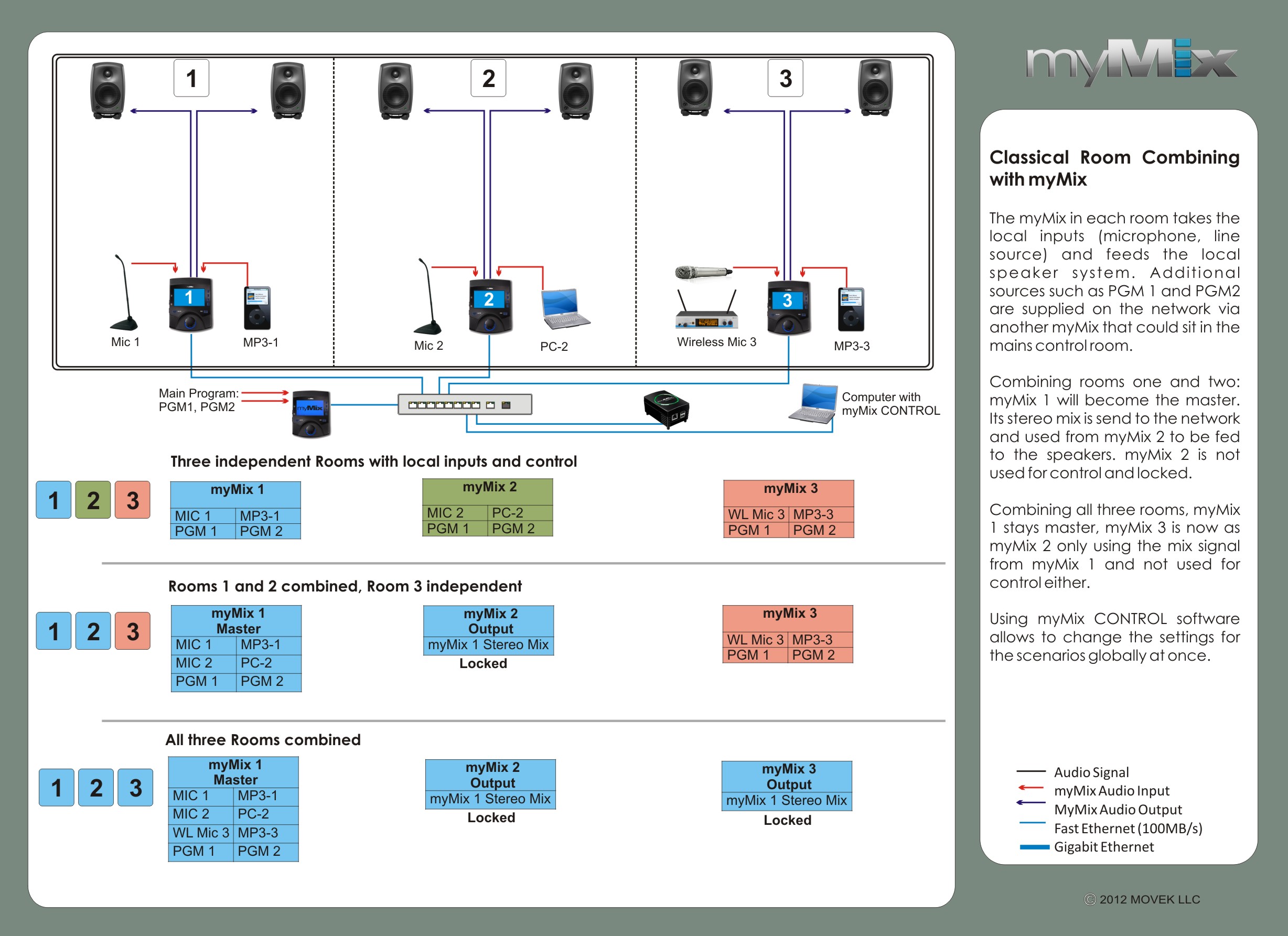

Classical Room Combining with myMix

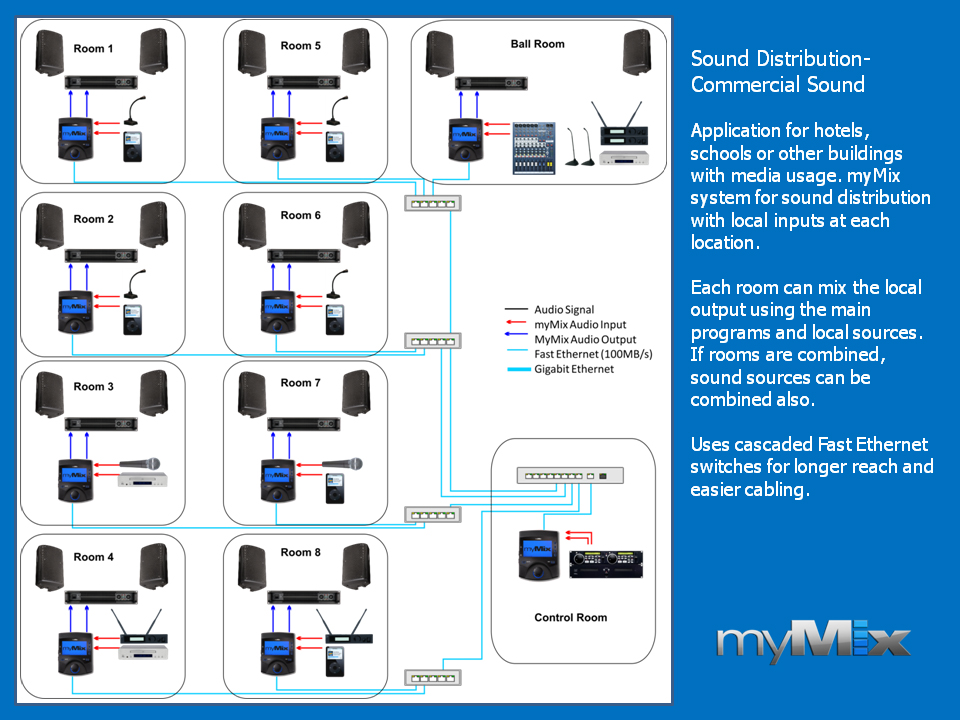

Sound Distribution – Commercial Sound

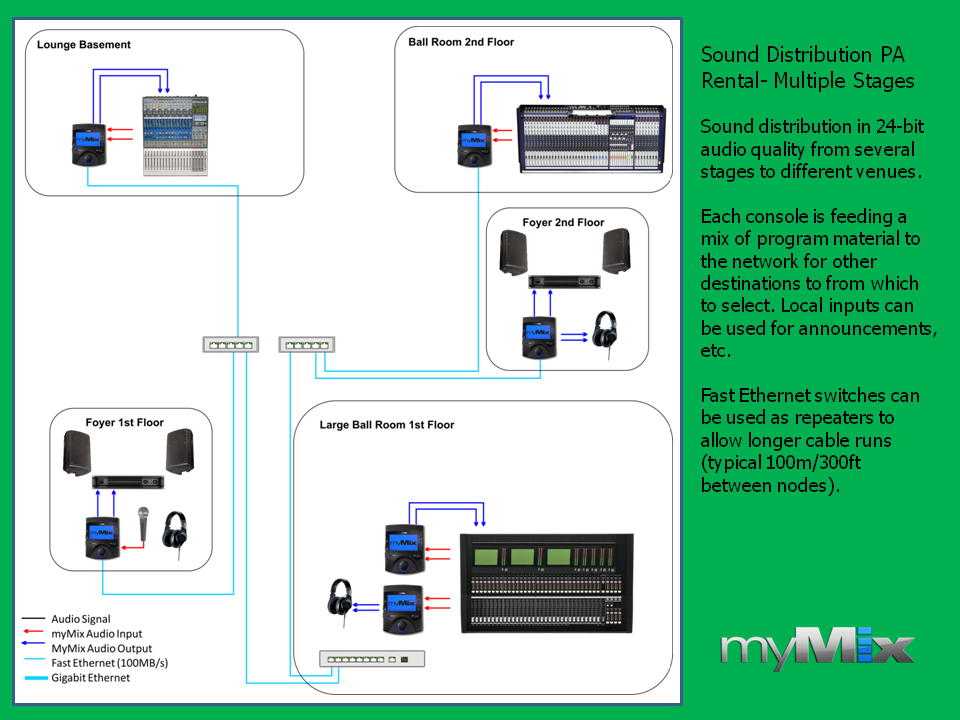

Sound Distribution-Multiple Stages

Large Area Sound Surveillance

Intercom and Listening in cultural venue or theater

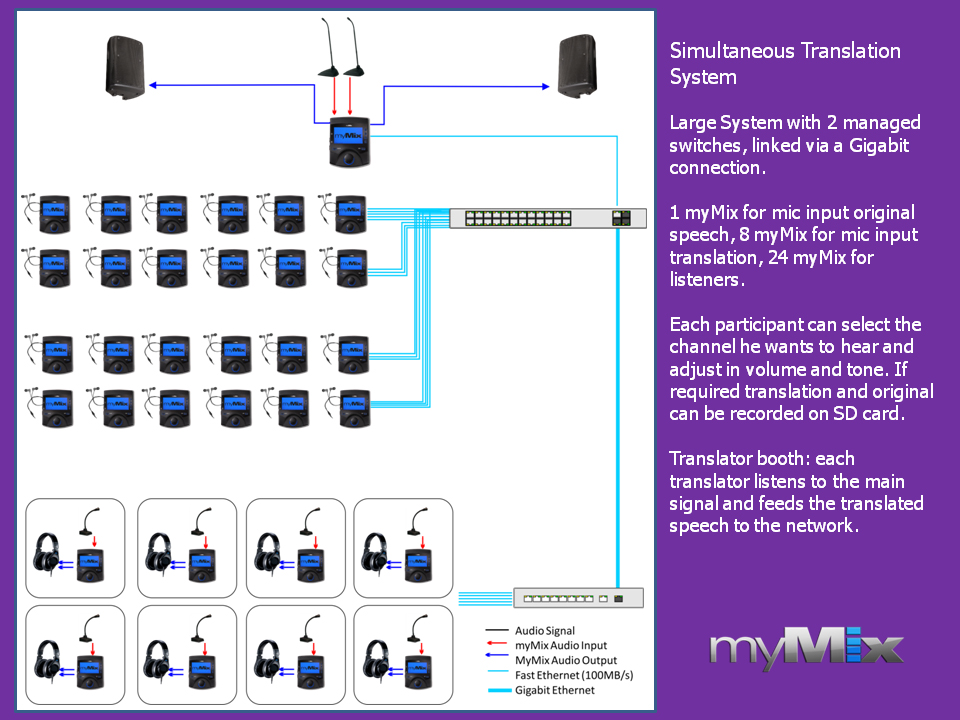

System for Simultaneous Translation

One teacher using myMix to work with multiple students

Audio Monitoring of Wireless Microphone Channels

Remote rooms combined with main system

myMix in EOC for private listening

Ambient Mics, Reporter Mics and Intercom over Long Distance
